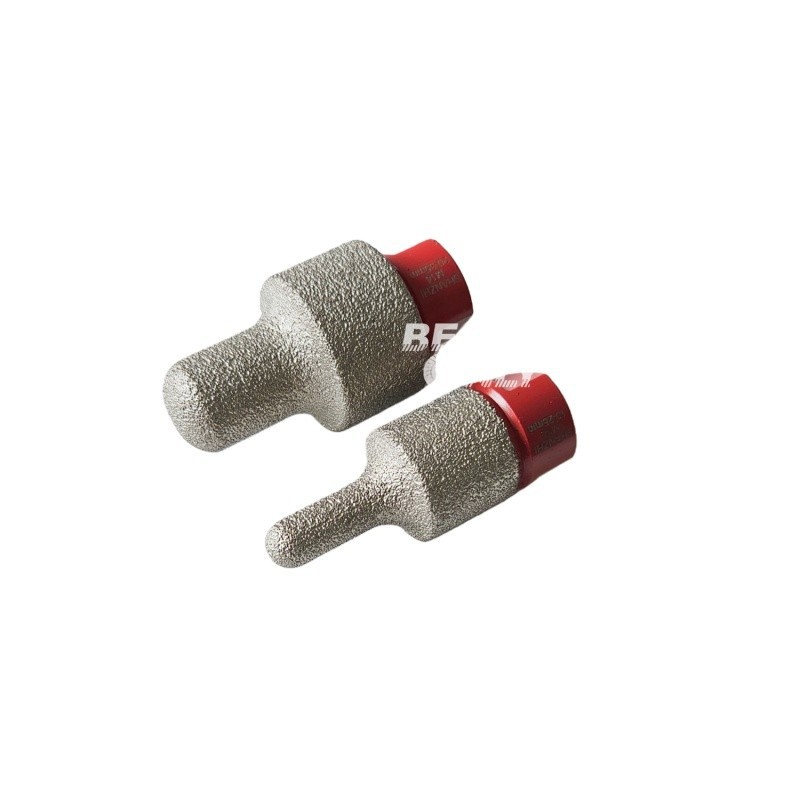

Diamond Finger Milling Bits

Model: BL-DFMB01
Diameter: D10-25mm,20-35mm
Grit: 50#,60#
Connection: M14 / 5/8''-11 Thread
Application: Dry&wet use for enlarging holes,Milling edges,Shaping

Send Inquiry

Description

Products Description

milling drill bit

The SHANZHI milling drill bits are mainly used for reaming existing holes or processing holes of special shapes; it is not recommended to be used as a drill bit for drilling. By adopting vacuum brazing processing technology, diamonds are firmly embedded, and their average service life is 3-5 times that of electroplated tools.

These milling drill bits are primarily suitable for hard stone materials, including ceramic tiles, porcelain tiles, marble, artificial stone, and granite. It is especially suitable for processing hard stone materials that require a high level of precision in hole processing.

Ready to upgrade your hole-processing efficiency? Contact us now for specifications and pricing.

Contact now

Product Details

5/8 End Mill Bit Features：

In the case of ceramic/porcelain tiles, marble, artificial stone, and granite, holes were made.
Hex shank, quick-install, dry and wet.
Extremely smooth cuts, extremely thin cuts, minimal cutting forces, quick heat removal.
Combined grinding rod + chamfering design for multi-function hole reprocessing.
Vacuum brazed, diamonds firmly bonded, long and stable service life.
#50/#60 fine grit, high surface finish, and good decorative effect.
3–5 times the life of electroplated tools, with high cost-effectiveness.

Products Specification

Diamete	10-25mm,20-35mm
Total length	65mm
Workable length	50mm
Diamond Grit	#50/60
Connection	M14,5/8''-11 Thread

Products can be customized according to customer needs

Products Application

The speed and feed rate of processing have to be modified in accordance with the various processing materials. As an example, the speed and feed rate must be lowered accordingly when cutting harder granite to eliminate early wear or loss of diamond particles by too much cutting force. The speed and feed rate can be suitably raised when machining less hard ceramic tiles, although it must not exceed the tolerance of the milling cutter.

Tell us your material, hole size, and quantity, and we'll recommend the right vacuum brazed router bits for you.

Tel:+8613600955925

Email:info@bestonlydiamondtools.com

Products Packing

The whole box of milling bits is wrapped with foam plastic and other cushioning materials to protect them from damage due to collision during transportation and storage.
