Granite Turbo Cutting Blade

Brand: Shanzhi
Material: Diamond
Application: For Granites Cutting
Model: GTB

Send Inquiry

Description

Products Description

Granite diamond turbo cutting blade is great for granite cutting, it can be used for both wet and drying cutting. The turbo rim of it make the cut fast with minimal chipping. The high diamond concentration provides longer life-span .

Granite Turbo Cutting blade with protective teeth

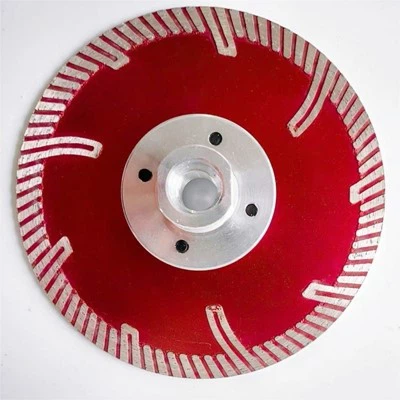

Diamond Turbo Cutting Blade for Granite cutting

Products Specification

Model	DWT*H
GTB-115	115(4.5")x2.6x20xM14/ 5/8"-11
GTB-125	125(5")x2.8x24xM14/ 5/8"-11
GTB-150	150(6")x2.8xM14/ 5/8"-11
GTB-180	180(7")x3.0xM14/ 5/8"-11
GTB-180	180(7")x3.0x22.23 Flange
GTB-230	230(9")x3.0x22.23 Flange

Products Feacture

Efficient Cutting

Granite turbo diamond saw blade, the turno rim of it makes the blade very sharp and provides a smooth and efficient cutting, ensuring that you save much time for your granites cutting.

Smooth Cutting Result

T-segmented deisgns for smoother cutting, provides you good cutting quality without broken edges,widely used for different granites.

Products Exhibition

exhibition

Products Application

Diamond Turbo cutting blade with turbo rim is designed for granites cutting, both good for wet and drying cutting.

product-800-571

Producttion line and packing

What is Granite Turbo Cutting Blade?

Granite Turbo Cutting Blades are diamond cutting wheels designed for precision cuts on granite. These blades are embedded with synthetic diamond grit along their edge, which act as abrasives to cut through a wide range of materials. The abrasive materials are held in place by a metal bond or electroplated onto the blade's surface, ensuring their longevity and cutting efficiency.

Advantages of Granite Turbo Cutting Blade

Reduced Noise
Granite Turbo Cutting Blades for granite cutting feature a silent core design. This innovative design significantly reduces the noise produced during the cutting process. The silent core minimizes vibrations and dampens the sound generated as the blade operates through the hard granite material. As a result, this feature creates a more pleasant and quieter working environment for operators and workers in stone fabrication shops.

Clean, Chip-Free Cuts
Granite Turbo Cutting Blades offer superior cutting performance compared to other blade types. These blades are embedded with tiny industrial diamonds that make them incredibly hard and durable. As a result, they can effortlessly cut through the tough surfaces of granite and marble without losing their sharpness. When using diamond blades, you can expect clean, chip-free cuts on both marble and granite surfaces. The hardness of the diamonds allows the blade to smoothly glide through the stone without causing any chipping or damage to the material.

Minimized Material Waste
One of the key advantages of using Granite Turbo Cutting Blade is their ability to minimize material waste during the cutting process. Due to their precision and efficiency, these blades ensure that each cut produces minimal waste, allowing for more economical use of raw materials. The use of diamond blades ensures that every piece cut from a slab of granite or marble is usable without any imperfections caused by chipping or cracking. This not only leads to cost savings by maximizing material utilization but also reduces environmental impact by minimizing wastage.

How to Choose Granite Turbo Cutting Blade

Turbo Diamond Blade With Triangle Protection Teeth

Diamond Saw Blade For Ceramic Tiles And Marble Cutting

Double Sided Segmented Blade For Tile And Ceramic

Granite is a popular material for countertops, flooring, and other applications due to its durability and aesthetic appeal. However, cutting granite can be challenging, and using the wrong blade can result in damage to the material and equipment. Here are some factors to consider when choosing the best Granite Turbo Cutting Blade for granite cutting.

Blade Size
The size of the Granite Turbo Cutting Blade you choose will depend on the size of the equipment you're using and the thickness of the granite you're cutting. Blades typically range from 4 inches to 14 inches in diameter, with larger blades being able to cut thicker materials.

Diamond Quality
The quality of the diamonds used in the Granite Turbo Cutting Blade will affect its performance and lifespan. Higher quality diamonds will provide a cleaner cut and last longer, but they will also be more expensive. Look for blades with diamonds rated at least medium or high quality.

Arbor Size
The arbor size of the Granite Turbo Cutting Blade must match the arbor size of the equipment you're using. Common arbor sizes for Granite Turbo Cutting Blades are 5/8 inch and 1 inch.

Wet vs. Dry Cutting
Wet cutting is generally recommended for granite cutting, as it reduces dust and heat buildup. However, some equipment may not be compatible with wet cutting. If you're using dry cutting, make sure to choose a blade with slots or holes to allow for heat dissipation.

Brand Reputation
Consider the reputation of the Granite Turbo Cutting Blade manufacturer. Look for brands with a history of producing quality blades and providing good customer support.

Techniques of Using Granite Turbo Cutting Blade

Granite is a popular material for countertops, flooring, and other applications in both residential and commercial properties. Cutting granite can be a challenging task, but using a Granite Turbo Cutting Blade can make the process easier and more efficient. Here are some tips and techniques for cutting granite with a Granite Turbo Cutting Blade:

Set Up Your Workspace
It's important to have a stable workspace when cutting granite. To ensure clean, straight cuts, it's imperative that you work on a stable surface. Use sawhorses or a sturdy table to support the granite, and make sure it's secured in place. Wear protective gear, including eye and ear protection and a dust mask. Finally, tie back your hair, roll up your sleeves, and take off any loose accessories or articles of clothing.

Prepare the Granite
Before cutting, make sure the granite is clean and dry. Use a damp cloth to wipe away any dirt or debris, and allow the surface to dry completely. If the granite has any existing cracks or chips, it's best to avoid cutting through those areas.

Mark the Dimensions
Using the tape measure, confirm the exact dimensions you'll need for the final product. Then, transfer these measurements onto the slab or tile, and apply the painter's tape in the general area where you'll be slicing through the stone. This will help prevent chipping. Finally, use the tape measure to draw a straight line over the tape where you'll actually be guiding the blade. This line will serve as a visual aid while you work, so make sure it's precise.

Prepare the Saw
Review the saw's operating manual closely, making sure to note any essential safety features. Once you feel comfortable proceeding, fit the machine with a Granite Turbo Cutting Blade that's designed for cutting slabs and tiles. The size of the blade should also be appropriate for the size of your saw.

Make a "Back-Cut"
Granite is especially vulnerable to chipping and cracking at the very end of each cut, just before the sawblade breaks through the last bit of stone. To prevent such damage, start by making "back-cuts." Determine where you're going to end each cut, and then slice about two inches from the outside in, making sure to follow the line you marked.

Reposition the Blade and Get to Cutting
After finishing all the necessary back-cuts, reposition the blade to the start of the first cutline. Use a steady, even pressure to guide the blade through the material. Avoid forcing the blade, as this can cause it to overheat and wear down quickly. If you need to make multiple cuts, allow the blade to cool down between cuts.

Scrutinize Your Work
Use cotton rags to wipe off the dust so you can inspect each cut closely once it's done. If you're not satisfied, reposition the tape and saw, and then make the necessary touch-ups to correct any minor issues. Once you are satisfied, move on to the next cut. After you've finished cutting, use a damp cloth to wipe away any dust or debris on the Granite Turbo Cutting Blade. Check the blade for wear and tear, and replace it if necessary. Store the blade in a dry, cool place until you're ready to use it again.

Frequently Asked Questions

Q: What is Granite Turbo Cutting Blade?

A: Granite Turbo Cutting Blades are diamond cutting wheels designed for precision cuts on granite. These blades are embedded with synthetic diamond grit along their edge, which act as abrasives to cut through a wide range of materials. The abrasive materials are held in place by a metal bond or electroplated onto the blade's surface, ensuring their longevity and cutting efficiency.

Q: How do Granite Turbo Cutting Blades improve marble and granite cutting?

A: Granite Turbo Cutting Blades provide exceptional hardness and durability due to their composition, allowing them to cut through tough materials like marble and granite with precision. Their ability to maintain sharpness reduces chipping and ensures a smoother finish.

Q: What type of blade is best for cutting granite?

A: For cutting granite, a Granite Turbo Cutting Blade is the best option due to the hardness of the material. Granite Turbo Cutting Blades are specifically designed to cut through tough materials like granite with precision and minimal chipping. The diamond particles embedded in the blade make it durable and strong enough to handle the hardness of granite without losing its sharpness. Using a Granite Turbo Cutting Blade ensures clean and smooth cuts when working with granite, making it the top choice for this type of cutting application.

Q: How can I ensure a clean and precise cut when using a blade for cutting granite?

A: To ensure a clean and precise cut when using a blade to cut granite, it is crucial to use a high-quality Granite Turbo Cutting Blade specifically designed for cutting hard materials like granite. Make sure the blade is sharp and suitable for the task at hand. Additionally, ensure that the granite slab is securely positioned and stable to prevent any movement during cutting, which can lead to chipping or uneven cuts. Slowly guide the blade through the granite using a steady hand and consistent pressure to achieve a clean and precise cut without causing damage to the stone.

Q: What factors should be considered when selecting a Granite Turbo Cutting Blade type?

A: Consideration should be given to factors such as blade size, arbor size, RPM rating compatibility with your equipment, material thickness capacity, cooling method required (wet or dry), as well as the specific characteristics of the stone being cut.

Q: How can I effectively use Granite Turbo Cutting Blades on granite?

A: To maximize efficiency when using Granite Turbo Cutting Blade, ensure proper water flow for cooling during wet cutting applications. Adjust feed rates according to blade specifications while maintaining optimal operating conditions for prolonged blade life.

Q: Are there any maintenance tips specific to Granite Turbo Cutting Blades?

A: For Granite Turbo Cutting Blades, ensure proper cooling during operation to prevent overheating. Clean the Granite Turbo Cutting Blades regularly to remove debris buildup that can affect cutting performance. Store the blades properly to avoid damage and maintain their sharpness.

Q: What advantages do Granite Turbo Cutting Blades offer over standard ones?

A: Granite Turbo Cutting Blades provide superior durability, precision cutting, and longer lifespan compared to standard blades. They ensure smoother cuts with minimal chipping or breakage, making them cost-effective in the long run due to reduced downtime and replacement frequency.

Q: Can a regular saw blade be used for cutting granite, or do I need a specialized blade?

A: A regular saw blade is not suitable for cutting granite as it is a dense and hard material that requires a specialized blade for cutting. Using a regular saw blade can result in damage to the blade and may not produce clean and precise cuts on the granite. A specialized diamond blade designed for cutting granite is recommended to ensure efficient and effective cutting with minimal risk of damage to the blade or the material.

Q: What safety precautions should I take when using a Granite Turbo Cutting Blade to cut granite?

A: When cutting granite with a Granite Turbo Cutting Blade, important safety precautions include wearing proper safety gear such as gloves, goggles, and a mask to protect yourself from debris. Make sure the work area is well-ventilated to prevent inhaling dust particles. Additionally, ensure the blade is sharp and securely attached to the tool to prevent accidents. It is advisable to follow proper cutting techniques and never force the blade through the granite to prevent kickbacks or injuries.
