Diamond Wire Saw For Granite Quarrying
Diameter：D11.5, D12.0, D12.5.
Line speed:33-35,31- 32,28-30.
Application Range: Extraction of hard minerals such as granite, marble, limestone, and other stones.
Description
Products Description

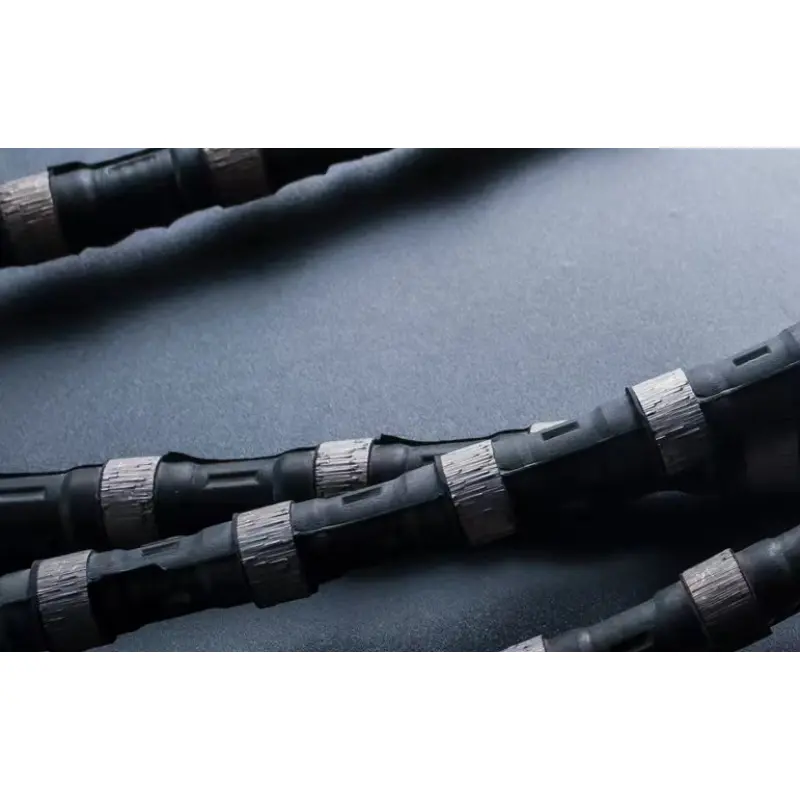

Diamond Wire Saw for Granite Quarrying
Diamond Wire Saw for Granite Quarrying is an efficient tool specifically designed for stone mining and cutting, widely used in the extraction of hard minerals such as granite. It achieves precise cutting by utilizing high-strength diamond particles, offering high efficiency, energy savings, and environmentally friendly features.
Contact Us for More Information
If you have any questions or would like to learn more about the specifications, pricing, or ordering information for the Diamond Wire Saw, please don't hesitate to contact our professional team. We offer diamond wire cutting services and provide customized solutions.
Click the button below to get professional consultation and quotes:
Get Quote
We look forward to collaborating with you and driving innovation and development in the stone mining industry!
Products Details
The advantages of wire saw granite mining:
1 Wide adaptability.
2 High mining efficiency.
3 Flexible cutting method.
4 Large cutting depth.
5 High output.
6 Low comprehensive cost.
7 Environmental protection and no pollution.
Products Specification
| Diameter (mm) |
Bead No (pcs/m) |
Reinforcement | Usage |
| D11.5 | 37/40 | Rubber/Rubber +spring |
Granite/quartz quarrying |
| D12.0 | 38/40 | Rubber/Rubber +spring |
Granite/quartz quarrying |
| D12.5 | 38/40 | Rubber/Rubber +spring |
Granite/quartz quarrying |
| Cutting material |
Line speed (m/s) |
Efficiency (m²/s) |
Life (m²/m) |
| Class1-2 | 33-35 | 15-32 | 25-40 |
| Class3-4 | 31- 32 | 8-24 | 15-35 |
| Class5-6 | 28-30 | 4-12 | 10-18 |
Diamond Wire Saw For Metal Features:
1. Fast cutting speed and long lifespan, low noise, and eco-friendly.
2. Stable quality control for excellent cutting performance and high cost-effectiveness.
3. Suitable for cutting all kind stone.
Want to learn more? Contact us now!
Products Application
Granite Quarrying
Ideal for large-scale granite cutting, improving production efficiency in quarries.
Stone Processing
Suitable for the precision cutting of other hard stones like marble, limestone, and quartz
Diamond Wire Saw Cutting Process Precautions
1. Determine Cutting Direction and Angle:
Before starting the cutting process, make sure to clearly define the cutting direction and angle. Avoid operating blindly.
2. Proper Support for Workpiece:
Ensure that the workpiece is securely fixed during the cutting process to prevent movement or instability.
3. Wear Protective Gear:
Always wear appropriate protective gear to avoid injury from debris or particles generated during the cutting process.
4. Clean the Cutting Area:
After cutting, promptly clean the cutting area and remove any debris or particles from the surface of the diamond wire saw.
5. Proper Storage:
When the diamond wire saw is not in use for an extended period, store it in a dry and dust-free environment to maintain its performance and longevity.
Products link and packing

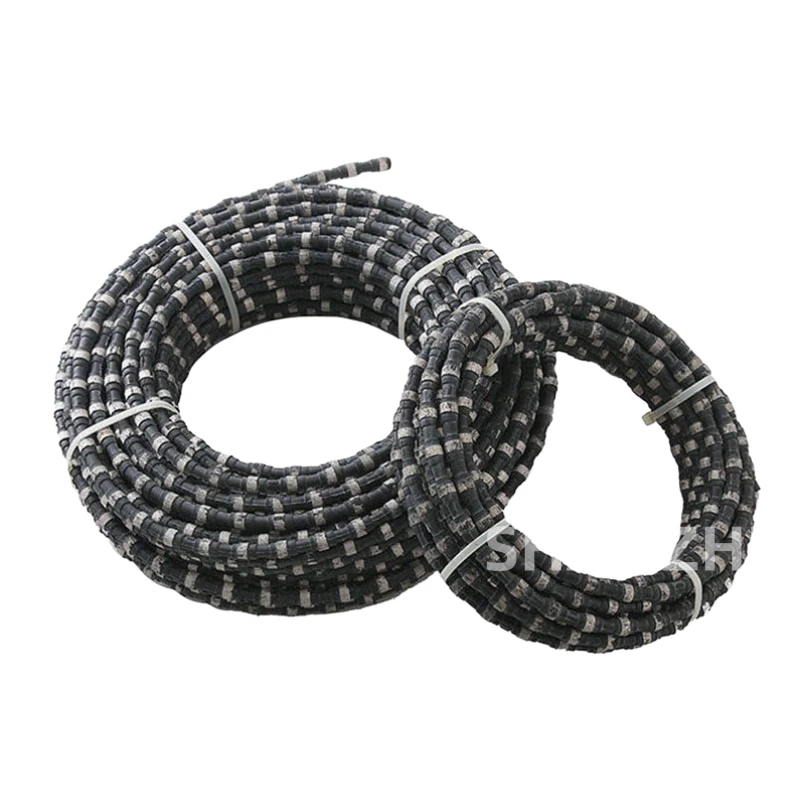

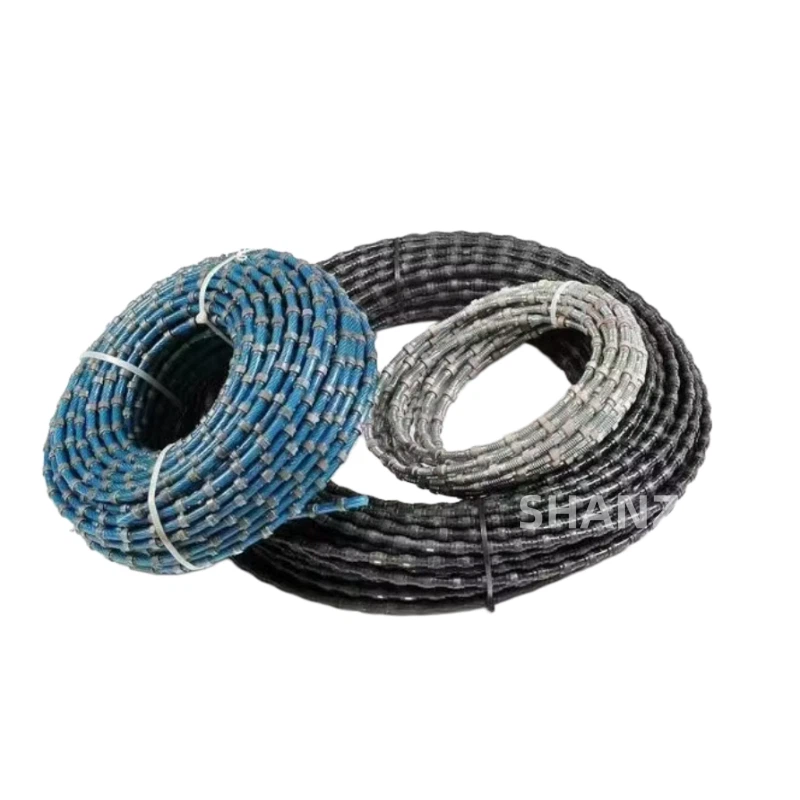

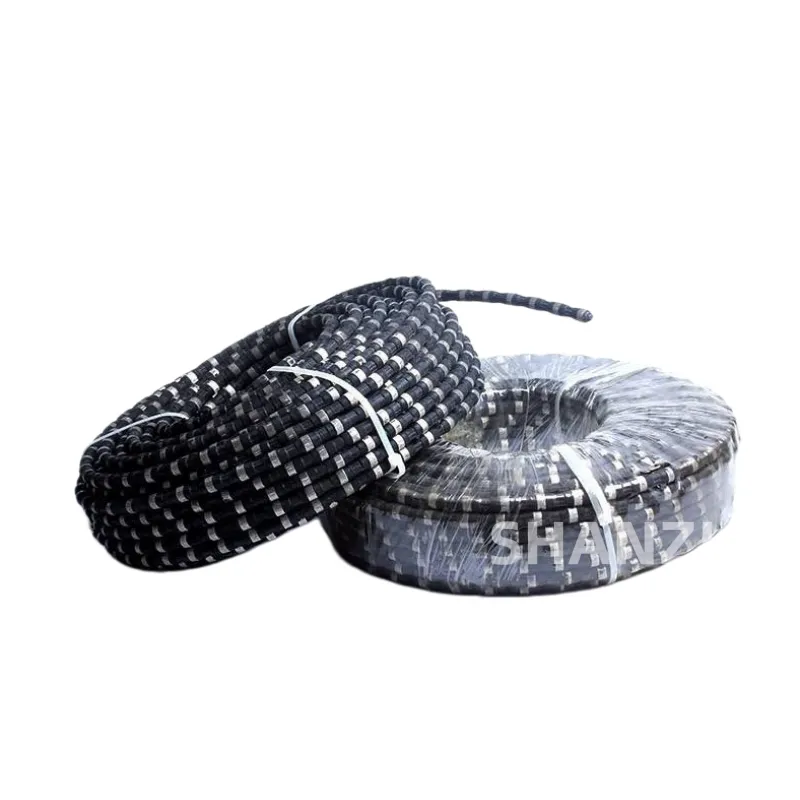

These images show the packaging and storage process of the diamond saw wire cutter after production. Each roll of diamond wire saw is carefully packaged to ensure it is not damaged during transportation. The factory's storage area is neat and organized, with products stored by different specifications for easy and quick shipping.
If you have any questions or would like to know more about our diamond saw wire cutter products, feel free to contact us anytime!
