Diamond Segments Welding Machine
Model: GP-50A
Specification: 11 kw diamond segment welder induction heater brazing machine
Application:Diamond saw blade welding, marble saw blade welding,woodworking,sawblade welding, cut grass piece of welding, cut aluminum welding.
Description
Products Description

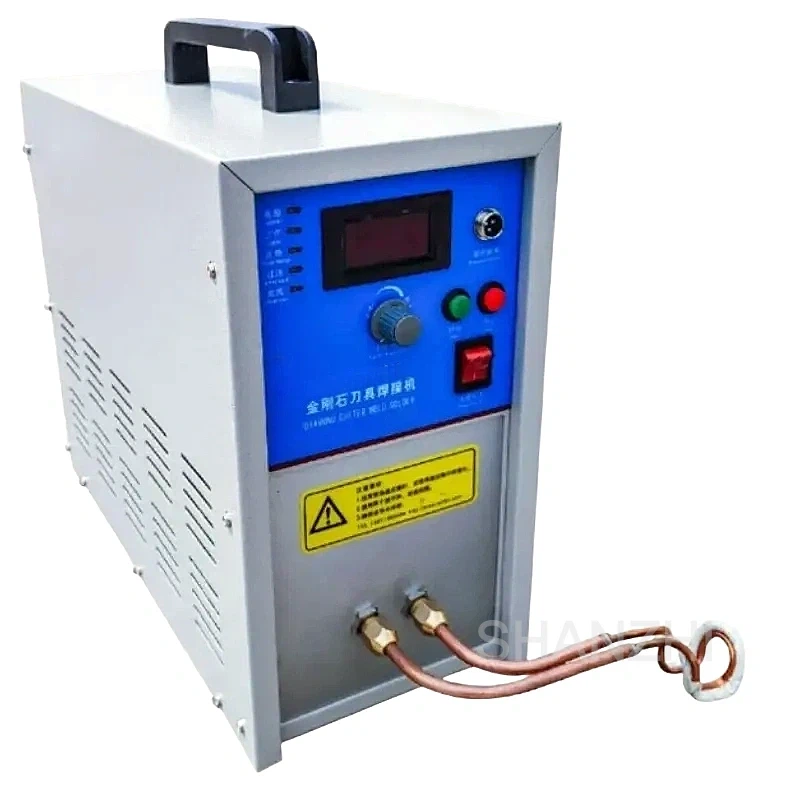

The Diamond Segments Welding machine body adopts a stainless steel shell and is equipped with a handle. The front side has an operation panel (including a display screen, an adjustment knob, and control buttons), and copper pipes for connection are provided at the bottom. Warning signs and equipment information nameplates are attached to the machine body. It has a power design of up to 50A, with a low failure rate and long service life; the stainless steel shell makes it corrosion-resistant
Order now in bulk and contact us for personalized quotes and customized solutions to meet your production requirements.
Diamond Segments Welding machine has high heating efficiency and can realize the brazing operation of diamond cutting tools (such as grinding wheel segments). It is mainly used in the brazing process of diamond cutting tool segments (such as grinding wheels) and is suitable for the production or maintenance scenarios of diamond tools. The welding machine is used with induction coils, foot switches, and welding materials.
Available for wholesale and bulk purchases. Perfect for large-scale manufacturers and commercial use. Contact us for competitive pricing and customized solutions."
Product Details
Stick Welding Machine Features:
- High power design, up to 50A current, low fault rate, durable and reliable;
- Corrosion-resistant stainless steel shell;
- High heating speed: 4-5s for each segment of the 1600mm saw. 8s for each segment of the grinding wheel;
- 24 hours working with 100% full load;
- Easy to install, only cooling water and electricity required, no professional needed.
For businesses involved in large-scale production, bulk purchasing of diamond segment welding machines ensures reduced costs per unit and a reliable supply of high-quality equipment. Our wholesale options are designed to meet the needs of industrial-scale operations, providing cost-effective solutions for businesses aiming to optimize their manufacturing processes.
Products Specification
|
Model |
GP-50A |
|
Output Oscillating Current |
300-1500A |
|
Power Supply Voltage |
220V 50Hz Three-phase |
|
Vibration Frequency |
20-60KHZ |
|
Input Voltage Range |
180V-250V |
|
N.W. |
20KG |
|
Input Power |
11KW |
|
Volume |
490mm*200mm*420mm |
|
Cooling Water Pressure |
≥0.3Mpa,≥1.8m3/h |
|
Load Rate |
100% |
We also offer customized solutions to meet your specific welding requirements. From machine size adjustments to laser power configurations, we can tailor the diamond segment welding machine to your business needs, ensuring maximum efficiency and optimal performance.
Products Application
t
t
Portable Welding Machine uses:
Metal Processing Field: It can be used for heat treatment such as quenching, annealing, and tempering of metal parts to improve the hardness and wear resistance of workpieces such as shafts and gears; it can also realize local heating of metals, which is used for pipeline welding preheating and metal smelting (such as gold, silver, and other precious metals).
Mechanical Maintenance and Assembly: It is suitable for the hot disassembly and assembly of bearings, motor rotors, and shafts. The installation or disassembly of interference fit parts is completed by using the principle of thermal expansion and contraction, which is convenient and efficient in equipment maintenance and mechanical assembly scenarios.
Hardware Manufacturing Scenario: It helps in the heating processing of hardware tools and molds, such as welding, preheating of drills, and local heat treatment of molds, to ensure the processing quality and performance of products.
Products Exhibition
t
t
t
t
Production Line and Packing
